Flexible Shaft Coupler ViaGasa 8 Font Glass Fibre Coupling for Encoder

Description

Product Overview

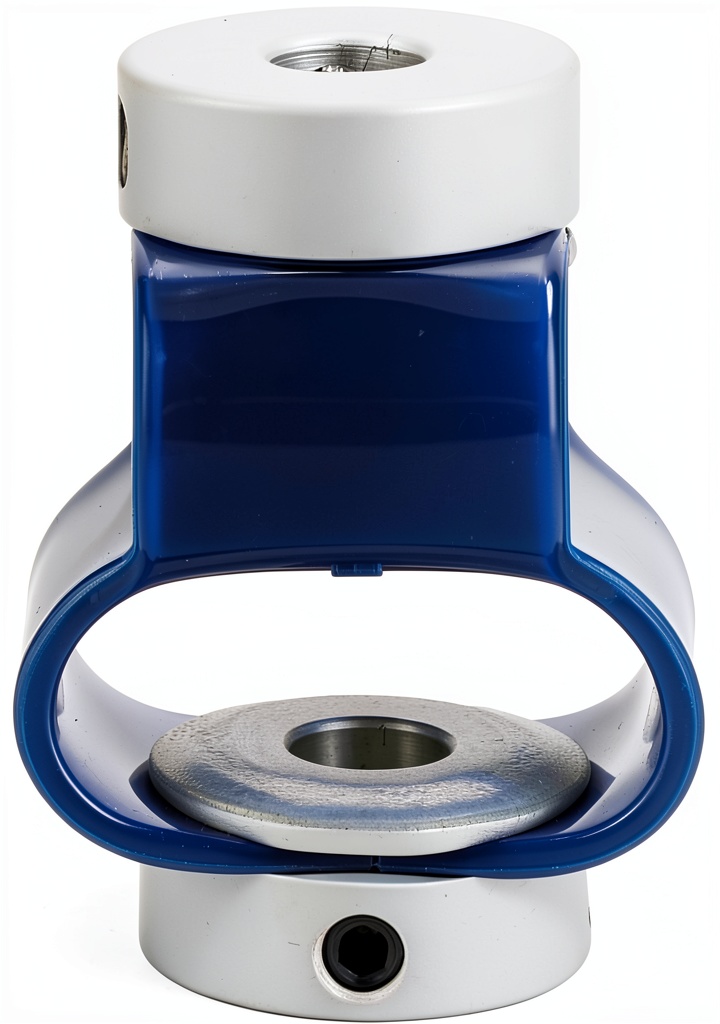

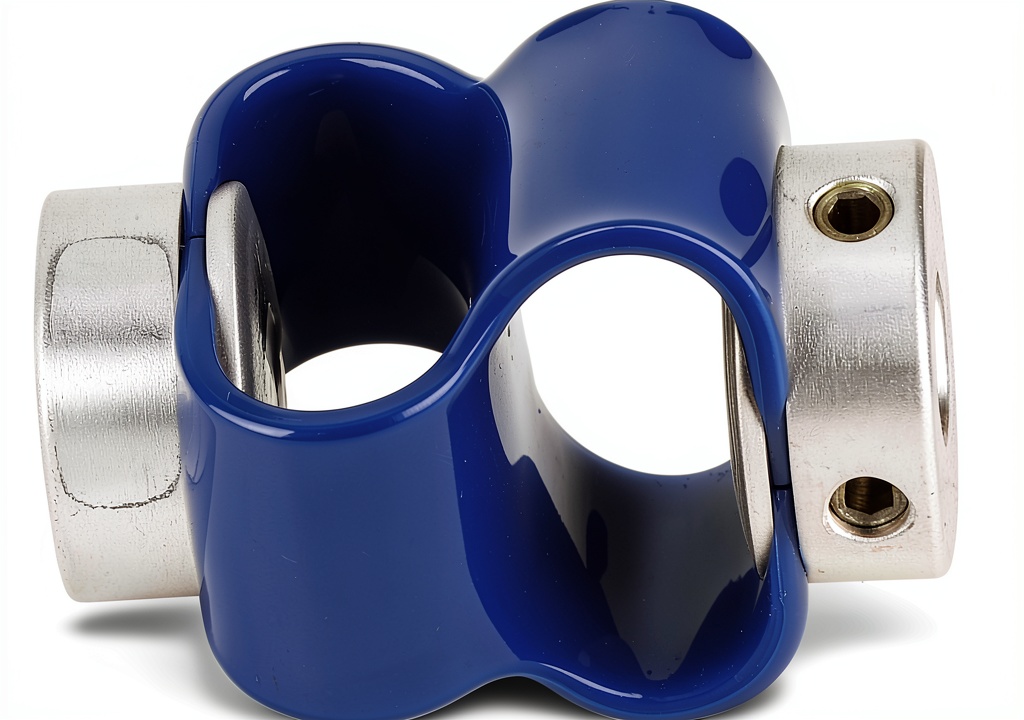

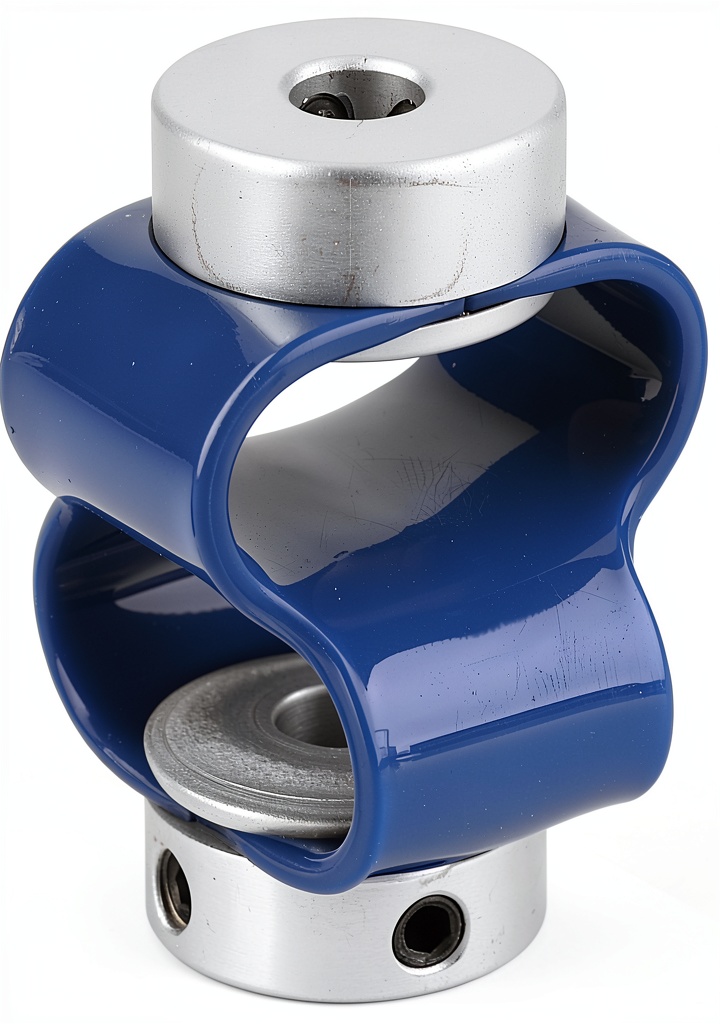

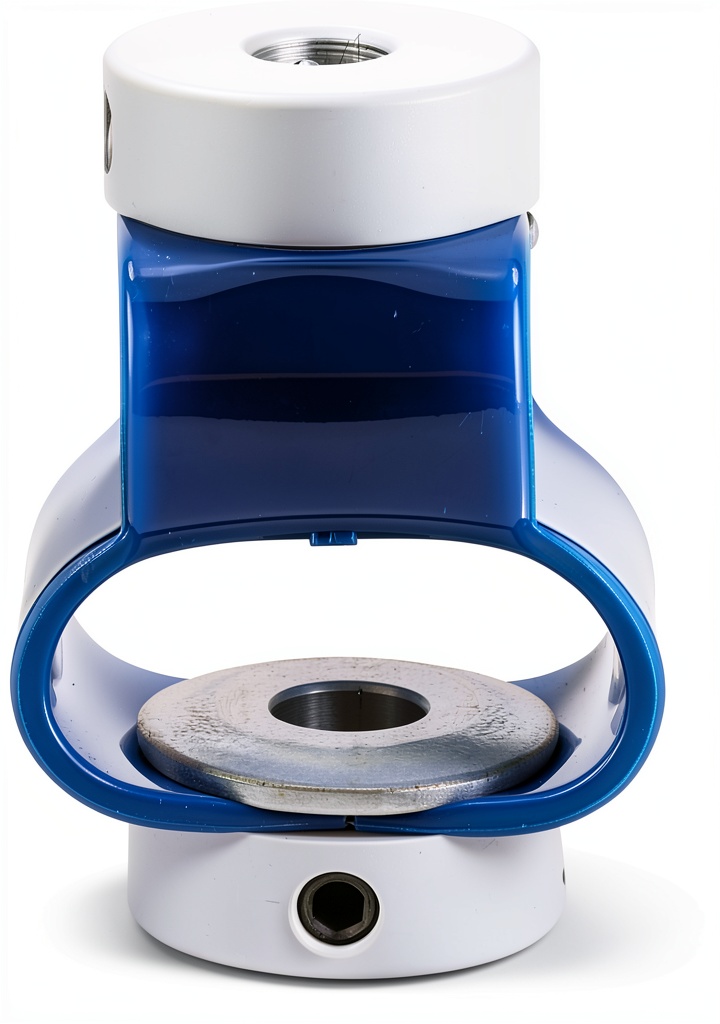

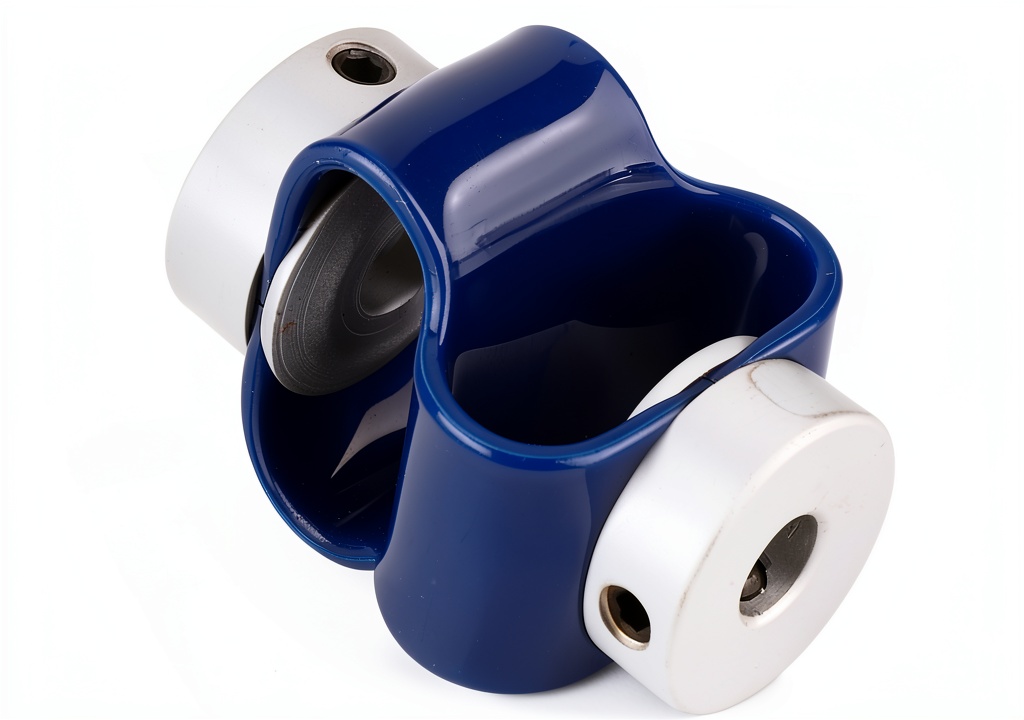

The ViaGasa Flexible Shaft Coupling is engineered from premium glass fibre material that delivers exceptional elasticity and durability in demanding power‑transmission environments. Its 8 Font design provides a balanced geometry that minimizes vibration while maintaining precise alignment between motor shafts and driven equipment. Measuring 1.46 x 1.1 x 1.1 inches and weighing only 1.44 ounces, the compact unit fits easily into tight mechanical layouts without sacrificing strength. The insulated construction tolerates high operating temperatures, protecting both the coupling and adjacent components from heat‑related wear. Designed with a clamp‑mount attachment method, installation requires only basic hand tools, allowing technicians to secure the coupling quickly and reliably.

The glass fibre composition is reinforced with high‑modulus fibers that give the coupling a superior tensile strength while remaining lightweight. This material choice provides a unique combination of flexibility and rigidity, allowing the coupling to absorb shock loads and reduce transmitted vibration across a wide range of speeds. The fiber matrix is also chemically inert, ensuring resistance to oils, solvents, and other industrial fluids that may be present in the operating environment.

The 8 Font design is a patented geometry that distributes torque evenly across the coupling’s interior, reducing stress concentrations and extending service life. With a torque capacity of up to 15 Nm, the coupling can handle the demands of medium‑size servo and stepper motors commonly used in automation. The design also features a low‑profile silhouette that minimizes axial length, making it ideal for applications where space is at a premium.

Compatibility is broad thanks to the standard shaft diameter range of 0.125 to 0.250 inch. The coupling’s internal bore is machined to tight tolerances, ensuring a snug fit that eliminates slippage. The external dimensions are optimized for easy integration into existing assemblies, and the lightweight nature reduces overall system mass, contributing to lower inertia and faster response times.

Installation is straightforward: the clamp‑mount mechanism uses two set screws that lock the coupling onto the shaft without the need for additional hardware. Torque specifications for the set screws are provided in the technical data sheet, ensuring a secure fit without over‑tightening. This tool‑free approach reduces installation time and simplifies maintenance procedures.

Usage

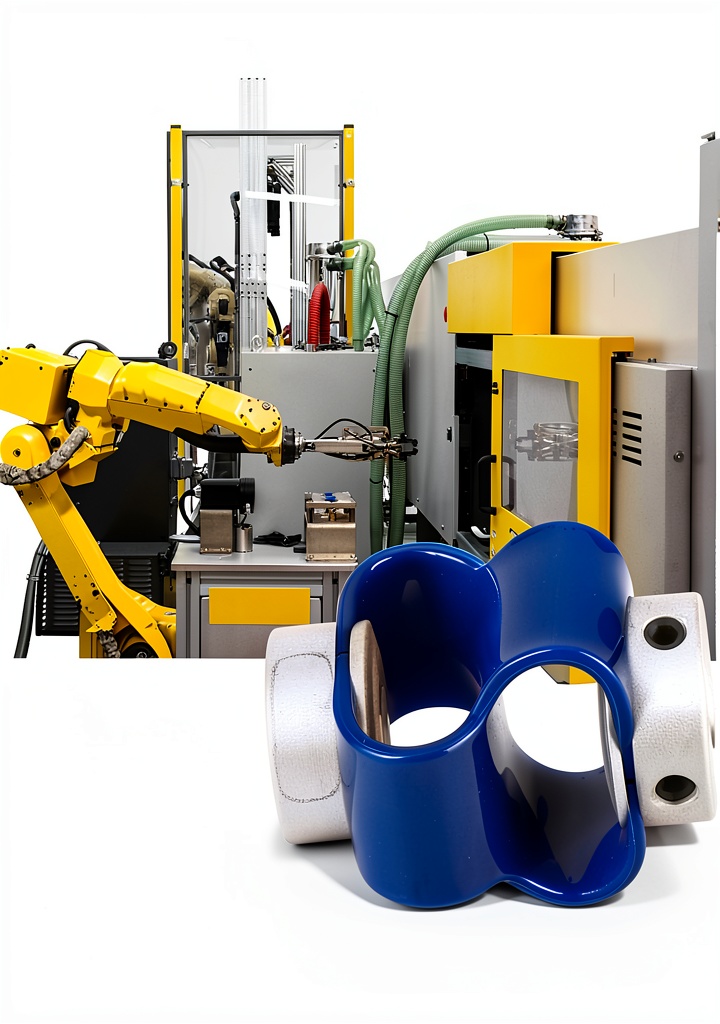

This flexible shaft coupling is ideally suited for a wide range of industrial applications where precise torque transfer and shock absorption are critical. It excels in connecting servo motors, stepper motors, and encoders in automated manufacturing lines, robotics, and CNC machinery. The high‑temperature resistance makes it reliable for use in environments such as metal‑working stations, extrusion equipment, and high‑speed printing presses. Operators appreciate the ease of mounting, which reduces downtime during routine maintenance or equipment upgrades. The coupling’s ability to accommodate slight misalignment helps extend the lifespan of bearings and gearboxes, delivering cost‑effective performance for facilities that demand continuous operation.

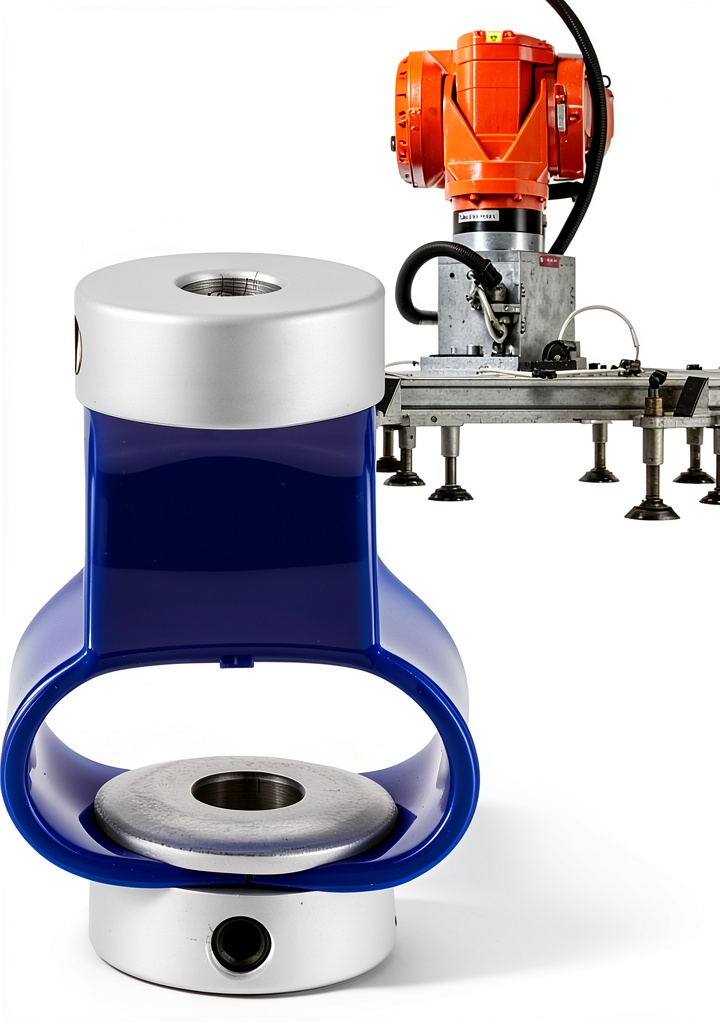

In robotic arms, the coupling provides a smooth transmission of motion while tolerating the dynamic loads generated during rapid positioning. Its ability to absorb torsional shock protects delicate sensor equipment and reduces the risk of premature wear. In CNC routers, the coupling maintains precise spindle speed control, ensuring high‑quality surface finishes on machined parts. The insulated design also safeguards electronic encoder signals from electromagnetic interference, a common concern in high‑precision environments.

For automotive testing rigs, the coupling’s temperature‑resistant properties allow it to operate alongside heated brake components and engine simulators without degradation. In food‑processing lines, the non‑metallic glass fibre material meets hygiene standards, resisting corrosion from cleaning agents and preventing metal contamination of products. The clamp‑mount system enables quick swaps of motor shafts during line changeovers, improving overall plant flexibility.

Installation guidelines recommend cleaning the shaft surface to remove oil or debris before mounting the coupling. Align the coupling’s keyway with the shaft’s key to ensure proper torque transmission. After tightening the set screws, verify the alignment using a dial indicator to confirm that axial runout remains within acceptable limits. Regular visual inspections should be performed to detect any signs of wear or fiber fraying.

Why Choose Us

ViaGasa’s commitment to quality is reflected in every aspect of this flexible coupling, from material selection to final inspection. Each unit undergoes rigorous testing for elasticity, temperature tolerance, and torque capacity to ensure it meets or exceeds industry standards. Our manufacturing process incorporates precision‑molded glass fibre reinforcement, guaranteeing consistent performance across large production batches. Customers benefit from a comprehensive warranty and responsive technical support that assists with installation guidance, troubleshooting, and spare‑part availability. By choosing this coupling, you gain a reliable component that reduces vibration, protects downstream equipment, and enhances overall system efficiency, all backed by a brand known for engineering excellence.

Our facilities are ISO 9001 certified, and every batch of couplings is traceable through a detailed quality‑control log. We employ ultrasonic testing and high‑resolution imaging to detect any internal defects in the glass fibre matrix before the product leaves the factory. This meticulous approach ensures that each coupling delivers the performance specifications advertised, providing peace of mind for engineers and maintenance teams.

Sustainability is also a core value at ViaGasa. The glass fibre material is recyclable, and our production processes minimize waste by re‑using excess fibers in secondary applications. By selecting our coupling, you contribute to a greener supply chain while still receiving a high‑performance component.

Our after‑sales service includes a dedicated technical hotline staffed by engineers familiar with flexible couplings. Whether you need assistance with torque calculations, alignment procedures, or troubleshooting unexpected vibration, our team is ready to help. We also offer a fast‑track parts replacement program that ensures minimal downtime for critical operations.

Key Features

The following features make this coupling a top choice for demanding industrial applications:

• Glass fibre construction provides superior flexibility and long‑term durability.
• 8 Font design ensures stable torque transmission with minimal vibration.
• Insulated and high‑temperature resistant for safe operation in harsh environments.
• Clamp‑mount system enables fast, tool‑free installation and secure shaft attachment.
• Dedicated after‑sales support and warranty give peace of mind for industrial users.

FAQ

What size shafts can this coupling accommodate?

The coupling is designed to fit standard shaft diameters ranging from 0.125 inch to 0.250 inch, providing flexibility for many common motor and encoder specifications.

Can the coupling handle misalignment?

Yes, the elastic glass fibre core allows for angular misalignment up to 2 degrees and axial offset up to 0.010 inch, helping to absorb shock and reduce stress on connected components.

Is the coupling suitable for high‑speed applications?

Its balanced 8 Font geometry and low‑mass design make it appropriate for speeds up to 5,000 RPM, while maintaining accurate torque transfer and minimizing heat buildup.

What maintenance is required?

Routine visual inspection for wear or damage is recommended. No lubrication is needed due to the self‑lubricating nature of the glass fibre material, simplifying upkeep.

How do I determine the correct torque rating for this coupling?

Consult the technical data sheet for the maximum torque capacity of 15 Nm. For your specific application, calculate the required torque based on motor output and load characteristics, then select a safety factor of at least 1.5 to ensure reliable operation under peak conditions.
