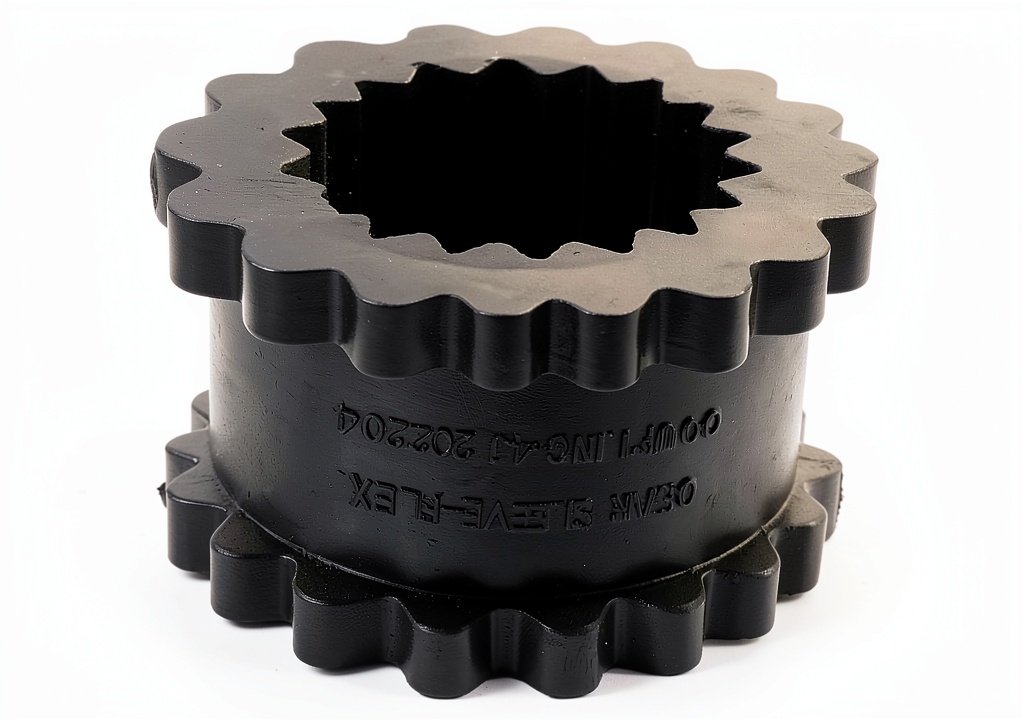

KBZ 3J Sleeve Coupling Insert 3JE EPDM Rubber Flexible Coupling

Description

Product Overview

Introducing the KBZ 3J Sleeve Coupling Insert 3JE, a precision‑engineered component designed to deliver seamless power transmission in demanding industrial environments. Constructed from high‑grade EPDM rubber, this flexible coupling insert combines exceptional elasticity with outstanding resistance to oil, heat, and chemical exposure, ensuring reliable operation over extended service periods. The 3J design features a patented sleeve geometry that aligns perfectly with standard 3J coupling housings, providing a secure fit that eliminates mis‑alignment and reduces vibration across a broad range of rotational speeds. With a compact package size of 5.55 × 4.69 × 1.02 inches and a lightweight profile of just 1.41 ounces, the insert is easy to handle and install without the need for additional tools or complex procedures. Engineered to meet the rigorous standards of the industrial and scientific market, the 3JE model has earned a top‑ranking position among flexible multi‑flex couplings, reflecting its popularity among professionals who require dependable performance for air compressors, pumps, mixers, blowers, and conveyor systems. The product is packaged in a sturdy cardboard box that protects the rubber sleeve from physical damage and environmental contaminants during shipping and storage. Detailed dimensional drawings and a full set of specifications are included on the packaging, allowing engineers to verify compatibility with existing equipment before purchase. Whether you are upgrading existing equipment or outfitting new machinery, the KBZ 3J Sleeve Coupling Insert offers a versatile, cost‑effective solution that enhances system efficiency while protecting downstream components from shock and wear.

Usage

Designed for versatility, the 3J Sleeve Coupling Insert fits a wide variety of equipment commonly found in manufacturing, processing, and material handling facilities. It is compatible with air compressors from leading brands such as Atlas Copco and Ingersoll Rand, as well as with centrifugal and positive‑displacement pumps used in chemical, food, and pharmaceutical production lines. The flexible EPDM sleeve absorbs torsional shock and dampens axial loads, making it ideal for applications where motor speed fluctuations or load variations are frequent. Installers appreciate the straightforward mounting process: the insert slides into the coupling housing, aligns with the keyed shaft, and secures with the existing set screws, eliminating the need for additional adapters or custom machining. This ease of installation reduces downtime during maintenance shutdowns and allows field technicians to perform replacements quickly, even in confined spaces. The product’s temperature tolerance of –40 °C to +120 °C ensures reliable operation in environments ranging from refrigerated storage facilities to high‑temperature drying ovens. In addition, the EPDM material’s low compression set guarantees that the coupling maintains its elasticity after repeated cycles, providing consistent performance in high‑duty applications such as textile machinery, printing presses, and metalworking equipment. The insert also performs well in dusty or humid conditions, as the rubber compound resists moisture absorption and prevents particulate ingress that could otherwise degrade coupling performance.

Why Choose Us

KBZ’s reputation for quality control and engineering excellence underpins the performance of the 3J Sleeve Coupling Insert. Each unit undergoes rigorous testing for dimensional accuracy, material integrity, and fatigue resistance, guaranteeing that the coupling meets or exceeds OEM specifications. The EPDM rubber compound is formulated to resist ozone cracking, aging, and exposure to hydraulic fluids, providing a longer service life compared with standard neoprene or nitrile alternatives. In addition, KBZ offers comprehensive technical support, including detailed installation guides, torque specifications, and compatibility charts, ensuring that customers can select the correct model for their specific machinery. Our responsive after‑sales service team is available to address any questions or concerns, and we provide a straightforward warranty that covers manufacturing defects for a full year from the date of purchase. By choosing KBZ, you benefit from a trusted partner that prioritizes durability, performance, and customer satisfaction throughout the product lifecycle. Our manufacturing facilities are ISO 9001 certified, and we employ a continuous‑improvement program that incorporates feedback from field service engineers to refine product designs. Sustainability is also a core value; the EPDM material is recyclable, and our packaging uses recycled cardboard to minimize environmental impact. For large‑scale projects, we can coordinate bulk shipments and provide custom labeling to streamline inventory management. All of these factors combine to make the KBZ 3J Sleeve Coupling Insert a reliable, cost‑effective choice for OEMs, system integrators, and maintenance professionals alike.

Key Features

• High‑grade EPDM rubber sleeve delivers superior elasticity and resistance to oil, heat, and chemicals, extending the service interval and reducing replacement costs.
• Patented 3J sleeve geometry ensures perfect alignment with standard 3J housings, minimizing vibration and protecting downstream equipment from shock loads.
• Compact size and lightweight design simplify handling and installation, allowing quick replacement without additional tools or machining.
• Wide temperature operating range (‑40 °C to +120 °C) supports reliable performance in both refrigerated and high‑heat industrial applications.
• KBZ provides dedicated technical assistance and a one‑year warranty, giving customers confidence and support throughout the product’s lifespan.

FAQ

What types of machinery are compatible with the 3J Sleeve Coupling Insert?

The 3J Sleeve Coupling Insert is engineered to work with any equipment that utilizes a standard 3J coupling housing. This includes air compressors from manufacturers such as Atlas Copco and Ingersoll Rand, centrifugal and positive‑displacement pumps used in chemical processing, food‑grade mixers, blowers, and conveyor drive systems. The flexible EPDM sleeve also performs well with motor‑driven gearboxes, textile looms, printing presses, and other machinery where torsional shock absorption and vibration damping are required. Compatibility charts are provided in the product documentation to help users verify fit for specific model numbers.

How do I install the coupling insert correctly?

Installation begins by removing any existing coupling components and cleaning the housing interior to eliminate debris. Slide the EPDM sleeve into the 3J housing until it seats fully against the inner flange. Align the keyed portion of the sleeve with the shaft key on the motor or driven equipment, ensuring that the keyways match precisely. Secure the sleeve using the set screws supplied with the original coupling, tightening them to the torque values specified in the installation guide (typically 0.8 Nm for steel screws). Verify that the sleeve rotates freely without binding and that there is no axial play. Once installed, perform a short run‑in test at low speed to confirm proper alignment before returning the system to full operational speed.

Can the EPDM sleeve handle exposure to hydraulic fluids?

Yes, the EPDM rubber compound used in the 3J Sleeve Coupling Insert is specifically formulated to resist degradation from a wide range of hydraulic fluids, including mineral oil‑based, synthetic, and water‑based fluids. The material’s low permeability prevents fluid absorption that could otherwise cause swelling or loss of elasticity. However, for applications involving aggressive solvents or highly acidic fluids, it is recommended to consult the technical data sheet to confirm compatibility or consider an alternative material such as Viton® if necessary.

What warranty and support does KBZ offer for this product?

KBZ provides a one‑year limited warranty that covers any manufacturing defects in materials or workmanship. The warranty period begins on the date of purchase and is valid for the original purchaser only. In addition to the warranty, KBZ offers a dedicated technical support line staffed by engineers who can assist with installation questions, troubleshooting, and performance optimization. Customers can also access a comprehensive online knowledge base that includes installation videos, FAQs, and downloadable CAD drawings. For bulk orders or custom projects, KBZ can arrange on‑site training sessions and provide priority shipping options.
